Product Description Summary

Built to perform under pressure, the Pro Wiring Harness supports auxiliary lights up to 150W, with high-grade copper wiring, waterproof connectors, and a rugged braided sleeve for durability in all terrains.

Pro Wiring Harness – Reliable Power Delivery for All Auxiliary Lights

Engineered to deliver consistent performance under extreme conditions, the Pro Wiring Harness is the ultimate solution for powering any auxiliary light up to 15 Amps / 150 Watts. Built with high-quality components, this harness ensures secure and long-lasting connectivity, even in harsh environments.

Top-Notch Build & Safety

Waterproof Connectors – Equipped with premium waterproof connectors for maximum durability in all weather conditions.

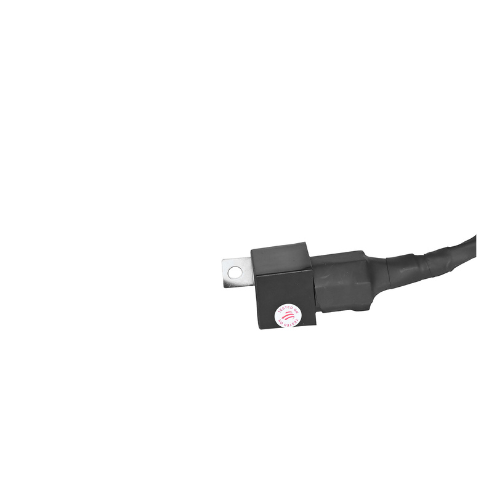

IP66 Rated Relay – Offers superior protection against dust and powerful water jets.
Braided Mesh Sleeve – Provides rugged shielding from heat, dirt, and weather damage.

Premium Wiring Components

Automotive-Grade Wires – A mix of 1.5, 2, and 2.5 Sqmm fire-retardant wiring for safe, reliable performance.
100% Pure Copper – Ensures optimal electrical conductivity and minimal resistance.
Heavy-Duty Fuse – Includes a 15A fuse for added protection and overload control.

Specifications

• Wire Type: 100% Pure Copper

• Standard Wattage: 220W

• Peak Wattage: 300W

• Wire Size: 1.5mm

• Fuse Capacity: 15A

• Maximum Load Capacity: 15A

• Wire Grade: Fire-retardant and automotive-grade

• FAQs

  Q1: Is the wiring harness compatible with all auxiliary lights?
  Yes, it is designed to support any auxiliary light up to 150 Watts / 15 Amps.

  Q2: Is the harness safe for use in rain or off-road conditions?
  Absolutely! The harness includes waterproof connectors and an IP66-rated relay, offering excellent protection against water and dust.

  Q3: What type of wires are used in the harness?
  It uses 100% pure copper wires in automotive-grade and fire-retardant specifications, ensuring safe and efficient power transmission.

  Q4: Does the harness come with a fuse?
  Yes, a 15A fuse is included to protect against power surges or short circuits.

  Q5: Is the braided mesh sleeve necessary?
  Yes, it protects the wires from heat, dust, and weather, improving longevity and performance.
