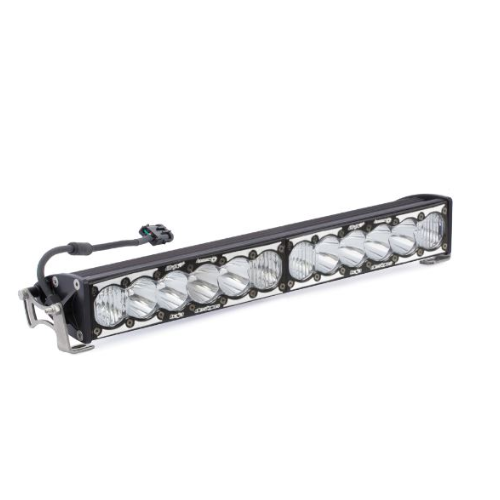

Baja Designs OnX6 LASER 20 Inch Hybrid LED/Laser Light Bar – Extreme Distance Lighting

The Baja Designs OnX6 20 Inch LASER Hybrid Light Bar combines next-generation LEDs with advanced laser technology, delivering unmatched distance projection for off-road enthusiasts. Engineered for high-speed performance, it provides a powerful, smooth blend of illumination across multiple zones for ultimate visibility on dirt tracks.

Extreme Lighting Performance

• Hybrid Projection – Combines 8 high-output LEDs with 4 precision laser chips for superior reach.

• Unmatched Distance – Projects 30–40% farther than the OnX6+ model, ideal for high-speed off-road driving.

• High-Speed Spot Optics – Provides a smooth, far-reaching beam covering Zones 2, 3, 4, up to Zone 51.

Premium Build & Durability

• Aircraft-Grade Housing – Black anodized billet aluminum with Mil-Spec hard coating.

• Impact Resistant – IK10 compliant for mechanical impact testing.

• Water & Dust Proof – IP69K rated; waterproof up to 9 ft and pressure washable.

• Replaceable Lenses & Optics – Easy maintenance and long-lasting reliability.

Comfort & Efficiency

• Natural Daylight Output – 5000K color temperature reduces driver fatigue.

• CopperDrive Technology – Ensures 100% LED drive for maximum performance.

• MoistureBlock Sealing – Waterproof, rainproof, and fully submersible.

Technical Specifications

• Length: 20 in. (508 mm)

• Depth: 4.29 in. | Height: 2.69 in.

• Weight: 7.85 lbs

• Wattage: 99.36 W | Amperage: 7.2 A

• Brightness: 3,750 Lumens

• Beam Pattern: Hybrid Spot

• Light Source: 4 Laser + 8 LED (Forward Projecting)

• Lens: Clear, Hardcoated Polycarbonate

• Housing: Aircraft-Grade Aluminum

• Mounting Hardware: Stainless Steel (Included)

• Wiring Harness: Not Included (PN: 640119 required)

• Compliance: MIL-STD810G, Patent No. 10,641,472

Important Notes

• Available in multiple sizes (10” to 50”).

• 20” and above function with a single ON/OFF switch.

• 40”/50” models require dual harnesses (PN: 640119) and higher vehicle electrical output.
