Product Description Summary

The Baja Designs OnX6 30” Hybrid LED/Laser Light Bar combines advanced LEDs and laser optics to deliver industry-leading distance projection for off-road adventures. Built with aircraft-grade aluminum, IP69K waterproofing, and IK10 impact resistance, it ensures maximum durability. With 3750 lumens, CopperDrive technology, and replaceable optics, this light bar is engineered for high-speed off-road performance and long-lasting reliability.

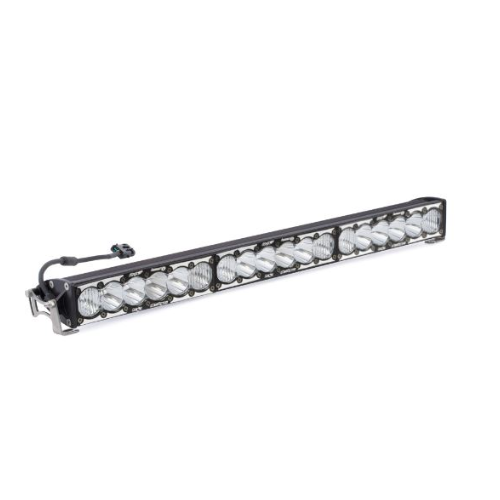

Baja Designs OnX6 LASER – 30 Inch Hybrid LED/Laser Light Bar – High-Speed Spot

Experience unmatched off-road visibility with the Baja Designs OnX6 Hybrid LED/Laser 30 Inch Light Bar. Designed with cutting-edge LED and laser technology, this light bar delivers exceptional long-distance illumination, making it the ultimate choice for high-speed desert runs and rugged adventures.

Enhanced Lighting Performance

• Hybrid LED/Laser Technology – Combines next-gen LEDs with laser chips for a beam that reaches 30–40% farther than the OnX6+.

• High-Speed Spot Optics – Smooth, long-distance projection across Zones 2–51 for maximum visibility.

• Dual Power Modes (10” models only) – Control LEDs and laser chips separately for flexible output.

Durability & Build Quality

• Premium Construction – Aircraft-grade aluminum housing with Mil-Spec hard anodize finish.

• Impact & Water Resistance – IK10 compliant for mechanical impact and IP69K waterproof (submersible up to 9ft).

• Replaceable Lenses & Optics – Extend lifespan with easy maintenance.

• CopperDrive Technology – Drives LEDs at 100% for maximum brightness and reliability.

Technical Specifications

• Length: 30 in | Depth: 4.29 in | Height: 2.69 in

• Weight: 11.45 lbs

• Brightness: 3750 Lumens

• Lighting Tech: 6 Laser / 12 LED

• Beam Pattern: Hybrid Spot

• Wattage: 99.36 W | Amperage: 7.2 A

• Rated Life: 49,930 Hours

• Housing: Billet Machined Aluminum

• Lens: Hardcoated Polycarbonate (Clear)

• Mounting: Stainless Steel Hardware (Included)

• Wiring Harness: Not Included (Recommended PN:640119)

Added Benefits

• Warranty – Backed by Limited Lifetime Warranty & 30-Day Satisfaction Guarantee.

• Standards Compliance – Exceeds MIL-STD810G durability standards.

• Daylight Color Output – 5000K natural color reduces driver fatigue.

Product Care

• Ensure proper wiring harness compatibility (PN:640119 required).

• Verify your vehicle’s electrical output before installation (especially for high-output 40″/50″ versions).

• Regularly clean lenses with mild solution to maintain clarity.

• FAQs

  Q1: What makes the OnX6 Hybrid different from regular LED light bars?
  A: It combines LED and laser technology, offering 30–40% farther light throw than standard OnX6+ bars.

  Q2: Does the 30-inch version support dual switching?
  A: No, only the 10-inch Hybrid model allows dual switch operation. The 20-inch and above use a single on/off switch.

  Q3: Is the wiring harness included?
  A: No, the harness is not included. The recommended harness is PN:640119.

  Q4: How durable is this light bar in extreme conditions?
  A: It is IP69K waterproof (submersible up to 9ft), IK10 impact rated, and exceeds MIL-STD810G standards.

  Q5: What warranty is provided?
  A: The product is backed by a Limited Lifetime Warranty and a 30-Day Satisfaction Guarantee.
