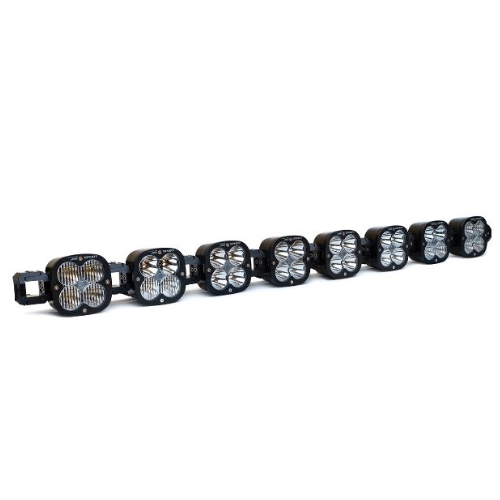

Baja Designs XL Linkable 8-Light LED Bar – Ultimate Off-Road Customizable Lighting

Experience unmatched performance and complete adjustability with the Baja Designs XL Linkable 8-Light LED Bar, designed for enthusiasts who demand a powerful, customizable, and rugged lighting solution. Engineered with next-generation LEDs and modular design, this system delivers 25,296 lumens of forward projection with multiple beam patterns for superior visibility on any terrain.

Powerful Illumination & Adjustability

• Next-Gen LEDs – Each XL Sport light produces up to 3,162 raw lumens for total performance.

• Customizable Setup – Build with 3 to 8 forward-projecting lights, covering illumination zones 1–4.

• Beam Variety – Wide cornering, driving combo, and spot lenses ensure smooth light blending.

• Vertical Adjustment – 45° pitch adjustment per light or entire unit.

• Horizontal Flexibility – Independent per-light alignment for straight or arc configurations.

Rugged Durability & Protection

• Premium Build – Hard anodized and powder-coated cast aluminum housing.

• Lens Protection – Hardcoated polycarbonate lens resists impacts and scratches.

• Black Rock Guards – Included for light protection when not in use.

• Overvoltage Protection – Built-in safeguard for long-term reliability.

• MIL-Spec Tested – Exceeds MIL-STD810G standards for extreme durability.

• Waterproof & Submersible – Rated IP69K, withstands up to 9ft submersion & pressure washing.

• Impact Resistance – IK10 compliant for superior mechanical toughness.

Easy Installation & Expansion

• Pre-Crimped Wiring Harness (640115) – Simplifies installation.

• Expandable System – Add additional lights with ease.

• Pre-Load Kit Included – Ensures secure mounting.

• Universal Fitment – Perfect for roofline or bumper mounting.

Added Benefits

• ClearView® Technology – Maximum light output exactly where you need it.

• CopperDrive® Technology – LEDs driven at 100% safely.

• 5000K Daylight – Natural color reduces driver fatigue.

• Replaceable Lenses & Optics – Service-friendly design.

• Satisfaction Guarantee – 30-Day Money Back Policy.

• Limited Lifetime Warranty – Complete purchase protection.

Technical Specifications

• Product Type: XL Linkable LED Light Bar

• Model/Set: 8 XL Sport Lights

• Light Output: 25,296 Lumens

• Wattage: 208W

• Amperage: 16A

• Light Quantity: 8 (32 LEDs)

• Beam Pattern: Multi-Pattern (Zones 1–4)

• Dimensions (L x H x D): 51.52” x 4.43” x 2.8”

• Housing Material: Billet Machined Aluminum

• Lens Material: Hardcoated Polycarbonate

• Mounting Hardware: Stainless Steel (Pre-Load Kit + Rock Guards included)

• Standards: Exceeds MIL-STD810G, IK10 Compliant, IP69K Waterproof
