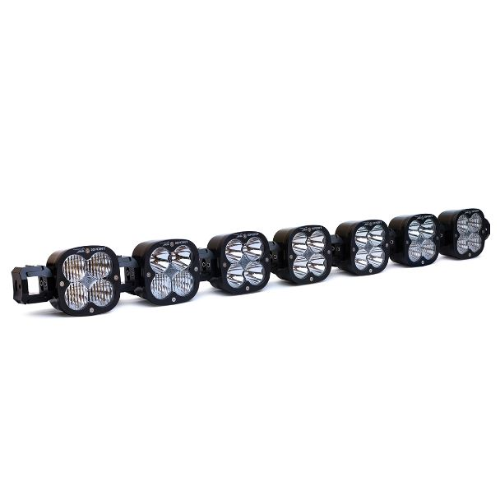

Aux LED Bar – XL Linkable 7 Lights Set – Baja Designs – 740005

Ultimate Off-Road Lighting with Customizable Performance

Engineered for enthusiasts who demand precision and power, the Baja Designs XL Linkable LED Light Bar (7-Light Set) delivers unmatched visibility with a fully customizable design. Built around the rugged XL Sport housing, this light bar outputs an impressive 22,134 lumens with advanced lens technology that illuminates multiple zones for complete coverage on any terrain.

---

Enhanced Performance & Adjustability

• Vertical Pitch Control – 45° adjustment per light or the entire unit.

• Independent Horizontal Adjustment – Create straight or arc configurations to match vehicle lines.

• Multi-Pattern Beam – Wide cornering, driving combo, and spot lenses for zones 1–4 illumination.

• Forward Projecting LEDs – 3 up to 8 lights configurable for optimal coverage.

---

Rugged Durability & Protection

• Premium Build – Billet machined aluminum bezel with hard anodized & powder-coated cast aluminum housing.

• Impact Resistant – IK10 compliant mechanical impact protection.

• Waterproof & Submersible – IP69K rated (withstands 9ft submersion & pressure washing).

• Rock Guards Included – Protect lenses when not in use.

• Exceeds MIL-STD810G – Tested for extreme durability.

---

Easy Installation & Expansion

• Pre-Load Kit & Links Included – Simple mounting setup.

• Fully Crimped & Trimmed Wiring – Hassle-free installation.

• Expandable System – Add more lights when required.

• Harness Included – Model 640115.

• NOTE – Mounting brackets sold separately (part 748000).

---

Specifications

• Light Quantity – 7 (28 LEDs total)

• Brightness – 22,134 lumens

• Beam Pattern – Multi-pattern (zones 1–4)

• Dimensions (L×H×D) – 45.34 × 4.43 × 2.8 in

• Wattage – 182W

• Amperage – 14A

• Average Lifespan – 49,930 hrs

• Lens – Hardcoated polycarbonate, clear

• Housing Color – Black

• Mounting Hardware – Stainless steel

• Overvoltage Protection – Built-in

---

Added Benefits

• Satisfaction Guarantee – 30-day money-back guarantee.

• Limited Lifetime Warranty – Complete purchase protection.

• Replaceable Lenses & Optics – Easy maintenance.

• CopperDrive® Technology – Safely drives LEDs at 100%.

• 5000K Daylight Output – Natural color reduces eye strain.
