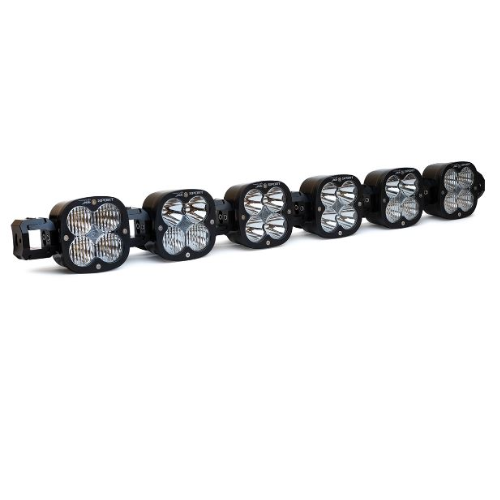

Baja Designs XL Linkable LED Light Bar – 6 Lights Set (740004) – Ultimate Off-Road Lighting Power

Engineered for enthusiasts who demand unmatched performance, flexibility, and rugged durability, the Baja Designs XL Linkable 6-Light LED Bar delivers a fully customizable lighting solution for your vehicle. With 18,972 lumens of raw power, advanced optics, and military-grade toughness, this kit ensures maximum visibility and reliability on every off-road adventure.

Lighting Power & Performance

• High Output Illumination – 6 XL Sport LEDs producing up to 18,972 lumens.

• Multi-Zone Coverage – Wide cornering, driving combo, and spot lenses covering zones 1–4 simultaneously.

• Daylight Clarity – 5000K natural white light reduces driver fatigue.

• CopperDrive® Technology – Safely drives LEDs at 100% output.

Unmatched Adjustability

• Vertical Adjustment – 45° of pitch per light or the full unit.

• Horizontal Adjustment – Independent per-light alignment for straight or arc setups.

• Expandable Design – Start with 6 lights and add more down the road.

• Vehicle-Specific Fit – Matches bumper or roofline contours with precision.

Built for Extreme Durability

• Military-Grade Strength – Exceeds MIL-STD810G standards.

• Impact Resistance – IK10 compliant against mechanical shocks.

• Waterproof & Submersible – IP69K rated, safe up to 9 ft deep and pressure washable.

• Premium Materials – Hard anodized and powder-coated cast aluminum housing with billet-machined bezel.

• Lens Protection – Hardcoated polycarbonate lens with included black rock guards.

Added Benefits

• Satisfaction Guarantee – 30-Day Money Back Policy.

• Limited Lifetime Warranty – Full purchase protection.

• Serviceability – Replaceable lenses and optics.

• Complete Kit – Includes harness (640115), pre-load kit, rock guards, stainless-steel mounting hardware.

• Note – Mounting brackets sold separately (Part: 748000).

Specifications

• SKU: 740004

• Wattage: 156W

• Amperage: 12A

• Light Quantity: 6 (24 LEDs total)

• Beam Pattern: Multi-pattern (forward projecting)

• Housing Color: Black

• Lens Color: Clear

• Dimensions: L 39.16” x H 4.43” x D 2.8”

• Rated Life: 49,930 hrs
