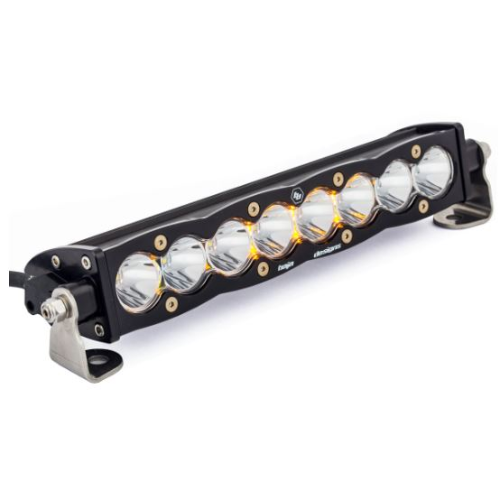

Baja Designs S8 Series Spot – Clear – 10 Inch LED Light Bar (701001)

Engineered for riders and off-road enthusiasts seeking maximum brightness, durability, and style, the Baja Designs S8 Series Spot 10″ LED Light Bar combines cutting-edge Cree LED technology with a sleek design. Featuring a powerful 6,324 lumens output, aircraft-grade aluminum housing, and an amber backlight for added visibility, this light bar ensures unmatched performance in the toughest conditions.

Superior Lighting Performance

• High Output Brightness – 6,324 lumens powered by advanced Cree LEDs.

• Focused Beam – Spot beam pattern delivers long-range illumination.

• Dual Lighting Modes – Forward-projecting beam plus amber backlight feature.

Built to Last

• Durable Construction – Billet machined aluminum bezel with Mil-Spec hard anodize.

• Impact Tested – IK10 compliant for mechanical impact resistance.

• Weatherproof – IP69K rated (waterproof up to 9ft & pressure washable).

• Overvoltage Protection – Built-in safety to protect electrical systems.

Easy Fit & Compatibility

• Universal Fit – Works across multiple vehicle types.

• Lightweight Design – Weighs just 2.4 lbs for easy mounting.

• Mounting Hardware Included – Stainless steel brackets ensure secure installation.

• Harness Options – Compatible with 640122 (On/Off with backlight) or 640115 (On/Off 3-pin for 10″-30″). Harness not included.

• Technical Specifications

  • SKU: 701001

  • Length: 10 in. | Depth: 3 in. | Height: 1.6 in.

  • Weight: 2.4 lbs

  • Brightness: 6,324 lumens

  • Wattage: 57.96W | Amperage: 4.2A

  • Rated Life: 49,930 hrs

  • LEDs: 8 Cree LEDs

  • Beam Pattern: Spot

  • Lens: Clear, hardcoated polycarbonate

  • Housing: Aircraft-grade aluminum, black finish

  • Standards: MIL-STD810G, IK10, IP69K

  • FAQs

    Q1: Does this light bar include a wiring harness?
    No, the harness is sold separately. Recommended options are 640122 (with backlight switch) or 640115 (On/Off 3-pin for 10″-30″).

    Q2: Can this light bar handle extreme weather?
    Yes, it is IP69K waterproof, pressure washable, and impact tested to IK10 standards.

    Q3: What vehicles is this light bar compatible with?
    It has a universal fit, suitable for trucks, SUVs, ATVs, UTVs, and off-road vehicles.

    Q4: How long does the light last?
    It offers an average rated life of 49,930 hours.

    Q5: What makes the S8 different from other LED light bars?
    The slim profile, amber backlight feature, high lumens per 10” section, and compliance with military-grade durability standards set it apart.
