Product Summary

The Baja Designs S8 Series 40” LED Light Bar is the ultimate upgrade for serious off-roaders and overlanders. With 25,400 lumens of forward-projecting Cree LED power, a rugged waterproof housing, and an amber backlit feature for added style, this light bar ensures maximum visibility and durability on every adventure. Built to withstand the harshest conditions, it’s a trusted companion for performance-driven riders.

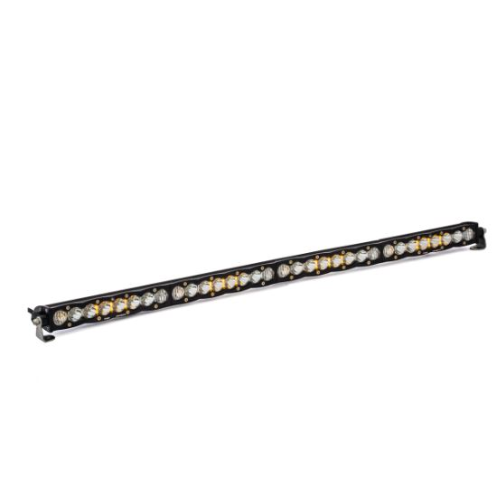

Baja Designs S8 Series Driving Combo LED Light Bar – Clear – 40 Inch (1016mm) – Ultimate Off-Road Lighting Power

The Baja Designs S8 40” LED Light Bar delivers unmatched performance in a sleek, slim design. With 32 high-output Cree LEDs producing an impressive 25,400 lumens, this bar ensures maximum visibility in all conditions. Built with aircraft-grade aluminum housing, advanced optics, and an amber backlit feature, it’s engineered for riders and drivers who demand superior durability, brightness, and style.

---

Enhanced Lighting Performance

• High Lumen Output – 25,400 lumens from 32 Cree LEDs.

• Driving/Combo Beam Pattern – Optimized for both wide-area coverage and long-distance projection.

• Amber Backlit Feature – Adds style and visibility when the main beam is not in use.

• 5000K Daylight Color – Natural light reduces driver fatigue.

• ClearView® Optics – Directs light exactly where it’s needed.

---

Built for Extreme Durability

• Aircraft-Grade Aluminum Housing – With Mil-Spec hard anodize finish.

• Hardcoated Polycarbonate Lens – Scratch-resistant and impact-proof.

• MoistureBlock® Technology – Waterproof, rainproof, and submersible (IP69K certified).

• IK10 Compliant – Tested for extreme mechanical impact resistance.

• Exceeds MIL-STD810G – Proven military-grade durability under harsh conditions.

• Replaceable Lenses & Optics – Easy to service and extend product life.

---

Power & Reliability

• CopperDrive® Technology – Drives LEDs at 100% for maximum brightness.

• Amperage Rating – 16A at full power.

• Wattage – 240W for uncompromising illumination.

• Average Lifespan – 49,930 hours of reliable lighting.

• Overvoltage Protection – Built-in safeguard for added reliability.

---

Easy Mounting & Compatibility

• Universal Fitment – Works with a wide range of vehicles.

• Mounting Hardware Included – Stainless steel brackets for secure installation.

• Harness Sold Separately – Compatible with harness #640122 (On/Off with backlight mode) or #640115 (On/Off 3-pin for 10″–30″ light bars).

---

Added Benefits

• 30-Day Money-Back Guarantee – Full satisfaction protection.

• Limited Lifetime Warranty – Backed by Baja Designs for long-term reliability.

• Patent No. D780,964 – Exclusive Baja Designs innovation.

---

Specifications

• Length: 40 in. (1016mm)

• Height: 1.6 in.

• Depth: 3 in.

• Weight: 8.65 lbs

• Beam Pattern: Driving/Combo

• Housing Color: Black

• Lighting Type: Cree LED (Forward Projecting)
