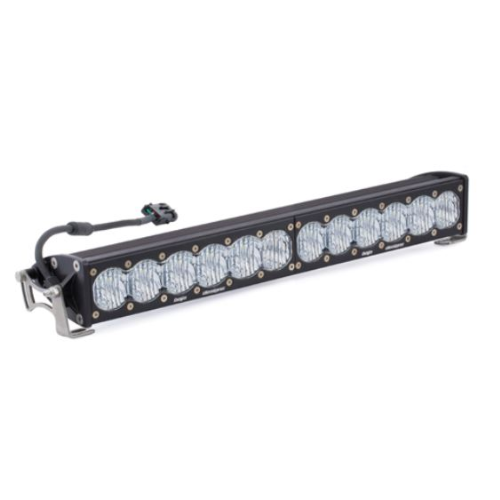

Baja Designs OnX6+ LED Light Bar 20 Inch (Clear, Wide Cornering) – 452004

Unmatched Off-Road Illumination & Durability

The Baja Designs OnX6+ 20 Inch LED Light Bar sets the standard for professional-grade off-road lighting. Engineered with next-generation LED technology and race-proven durability, this bar delivers extreme brightness, efficiency, and reliability in any terrain.

---

Powerful Illumination

• High Output Lighting – 24,920 lumens (High) / 18,460 lumens (Low) for superior visibility.

• Wide Cornering Beam – Optimized spread for enhanced peripheral vision on trails.

• Dual Lighting Modes – High and Low beam functionality for adaptable lighting.

---

Durability & Build

• Rugged Housing – Aircraft-grade aluminum with mil-spec hard anodize finish.

• Lens Strength – Hardcoated polycarbonate lens for impact and scratch resistance.

• Military Tested – Exceeds MIL-STD810G, IK10 impact rating, and IP69K waterproofing (submersible up to 9ft & pressure washable).

• MoistureBlock™ Technology – Ensures complete waterproof and dustproof protection.

---

Advanced Features

• uService® Technology – Replace or customize lenses without voiding warranty.

• Adjustable Mounting – Vertical adjustment with stainless steel brackets for precision aiming.

• Overvoltage Protection – Built-in safety against electrical surges.

---

Specifications

• Product Type: OnX6+ 20 Inch LED Light Bar

• Beam Pattern: Wide Cornering (Clear Lens)

• Lighting Technology: Forward Projecting LED (12 LEDs)

• Brightness: 24,920 lumens (High), 18,460 lumens (Low)

• Wattage: 216W (High), 160W (Low)

• Amperage: 16.6A (High), 12.0A (Low)

• Average Lifespan: 49,930 hours

• Dimensions: 20″ L × 2.69″ H × 4.29″ D

• Weight: 7.85 lbs

• Housing Color: Black

• Mounting Hardware: Stainless Steel Brackets (included)

• Wiring Harness: Not included (Recommended: #640115 for 10–20″ / #640119 for 30–50″)

---

Added Benefits

• Easy Installation – Universal fit with included brackets.

• Warranty Protection – 30-day Satisfaction Guarantee + Lifetime Limited Warranty.

• Race Proven – Trusted in extreme conditions, including Baja 1000.

---

Product Care & Maintenance

• Clean lens with mild detergent and water.

• Avoid abrasive cleaners or brushes.

• Check mounting brackets periodically for secure fit.
