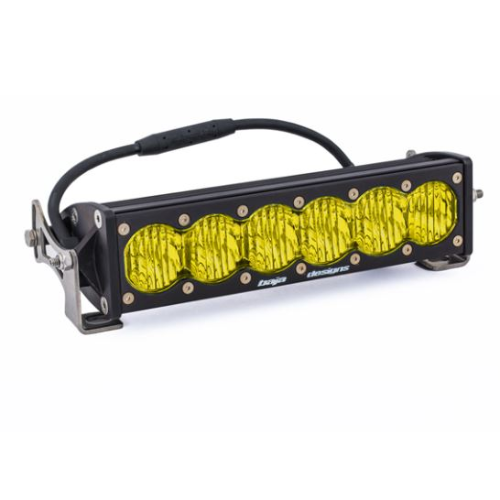

Baja Designs OnX6+ Wide Cornering Amber 10 Inch LED Light Bar – Unmatched Off-Road Illumination

The Baja Designs OnX6+ 10” Amber LED Light Bar sets the benchmark in off-road lighting with superior brightness, rugged durability, and advanced beam control. Designed for extreme conditions, it combines cutting-edge LED technology with precision optics to deliver exceptional visibility and performance when you need it most.

---

Enhanced Lighting Performance

• High Output Illumination – Produces 10,817 lumens on high beam and 9,230 lumens on low beam.

• Wide Cornering Beam – Optimized beam pattern for maximum side-to-side visibility on trails.

• Dual Lighting Modes – Switch between high and low beam for versatile lighting control.

• Forward Projecting Technology – Ensures long-range visibility with precision focus.

---

Maximum Durability & Build Quality

• Mil-Spec Housing – Aircraft-grade aluminum body with hard anodize finish.

• Impact Resistance – IK10 compliant, built to withstand rugged off-road shocks.

• Waterproof & Dustproof – IP69K rated, submersible up to 9ft and pressure-washer safe.

• MoistureBlock Technology – Prevents water/dust ingress in extreme environments.

---

Smart Engineering & Usability

• Vertical Adjustability – Customizable beam positioning with secure lock-in system.

• uService Technology – Allows easy lens replacement or beam customization without voiding warranty.

• Overvoltage Protection – Built-in safeguard to protect LEDs and wiring.

• Easy Installation – Comes with stainless steel mounting brackets (wiring harness sold separately).

---

Dimensions & Specifications

• Length: 10 in | Height: 2.69 in | Depth: 4.29 in

• Weight: 4.25 lbs

• Wattage: 106.26 W

• Amperage Draw: 7.7 A

• Average Lifespan: 49,930 hrs

• Lens Color: Amber (Hardcoated Polycarbonate)

• Bezel Material: Billet Machined Aluminum

• Mounting Hardware: Stainless Steel (included)

• SKU: 451014

---

Added Benefits

• Race-Proven Design – Built for extreme off-road endurance, trusted in Baja 1000.

• Warranty & Protection – Backed by a 30-Day Satisfaction Guarantee and Lifetime Limited Warranty.

• Universal Fitment – Suitable for a wide range of off-road vehicles.

---

Product Care

• Clean with mild soap and water; avoid harsh solvents.

• Periodically check mounting hardware for tightness.

• Store in a dry environment when not i

• FAQs

  Q1: Is the wiring harness included with the Baja Designs OnX6+ 10” light bar?
  No, the wiring harness is not included. Use part number 640115 for 10-20 inch bars and 640119 for 30-50 inch bars.

  Q2: Can I use this light bar in heavy rain or while pressure washing my vehicle?
  Yes, the OnX6+ is IP69K waterproof rated, meaning it can withstand submersion up to 9 feet and high-pressure washing.

  Q3: What vehicles can this light bar fit on?
  The OnX6+ is universal fit, making it compatible with trucks, SUVs, ATVs, UTVs, and off-road vehicles.

  Q4: How long does the light bar last?
  It has an average rated lifespan of 49,930 hours, ensuring long-term reliability.

  Q5: Can I replace the lens if it gets damaged?
  Yes, thanks to uService Technology, you can swap lenses or customize beam patterns without voiding the warranty.
