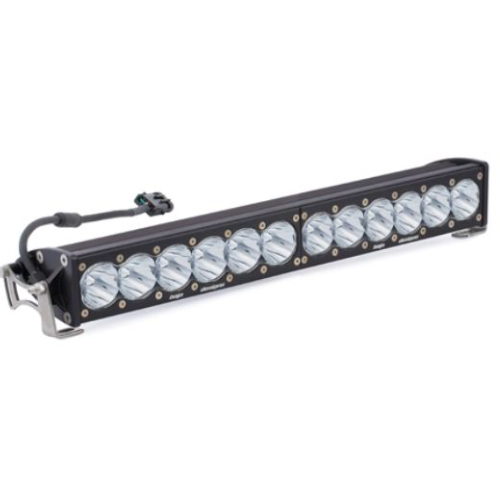

Baja Designs OnX6+ Spot LED Light Bar – 20 Inch Clear (452001) – Ultimate Off-Road Lighting Power

The Baja Designs OnX6+ 20-Inch Spot LED Bar is engineered for extreme off-road enthusiasts who demand unmatched illumination, durability, and versatility. Designed with advanced LED technology, high-speed spot reflectors, and military-grade construction, this light bar delivers maximum brightness and reliability on any terrain.

---

Extreme Illumination & Visibility

• Powerful Output – 24,920 lumens (High); 18,460 lumens (Low) for superior brightness.

• Next-Gen LED Technology – Ensures high intensity with improved efficiency.

• Spot Beam Pattern – Focused illumination to cut through darkness at high speeds.

• Hi-Low Functionality – Switch between lighting modes for versatile use.

Military-Grade Durability

• Rugged Housing – Aircraft-grade aluminum with mil-spec hard anodizing.

• Impact Resistance – IK10 compliant, proven tough against mechanical impacts.

• Waterproof & Dustproof – IP69K certified (waterproof up to 9ft & pressure washable).

• MoistureBlock Technology – Prevents water and dust intrusion even in harsh conditions.

Smart Design & Flexibility

• Adjustable Mounting – Vertical adjustments allow precise beam positioning.

• uService Technology – Easily swap lenses or customize beam patterns without voiding warranty.

• Compact Size – 20-inch bar with a depth of 4.29” and weight of just 7.85 lbs.

• Universal Fitment – Comes with stainless-steel mounting brackets for easy installation.

Specifications

• Dimensions: 20” (L) x 4.29” (D) x 2.69” (H)

• Weight: 7.85 lbs

• Amperage Draw: 16.6A (High) / 12A (Low)

• Wattage: 216W (High) / 160W (Low)

• Lens Material: Hardcoated Polycarbonate (Clear)

• Bezel: Billet Machined Aluminum

• Light Quantity: 12 forward-projecting LEDs

• Rated Life: 49,930 hours

• Product Type: OnX6+ 20 Inch LED Light Bar

• Wiring Harness: Not included (Use #640115 for 10–20” / #640119 for 30–50”)

---

Added Benefits

• Race Proven – Tested at the Baja 1000 for endurance and performance.

• Warranty Protection – Backed by a Lifetime Limited Warranty.

• Satisfaction Guarantee – 30-day money-back assurance.

---

Easy Maintenance & Care

• Avoid pressure washing at close range.

• Check mounts regularly to maintain beam alignment.

• Clean lens with mild soap and water only.

• Store in a dry, cool place when not in use.

• FAQs

  Q1: Does the Baja Designs OnX6+ 20-inch light bar include a wiring harness?
  No, the wiring harness is not included. For proper installation, use #640115 (10–20”) or #640119 (30–50”).

  Q2: Can the beam pattern be customized?
  Yes, with Baja Designs’ uService technology, you can swap lenses or modify beam patterns without voiding the warranty.

  Q3: How durable is the OnX6+ 20-inch light bar?
  It exceeds MIL-STD810G military testing, is IK10 impact rated, and IP69K waterproof, making it extremely tough.

  Q4: What vehicles can it be mounted on?
  It has a universal fit and comes with stainless steel brackets, making it suitable for trucks, SUVs, ATVs, UTVs, and off-road setups.

  Q5: What is the warranty coverage?
  It comes with a Lifetime Limited Warranty and a 30-day satisfaction guarantee for peace of mind.
