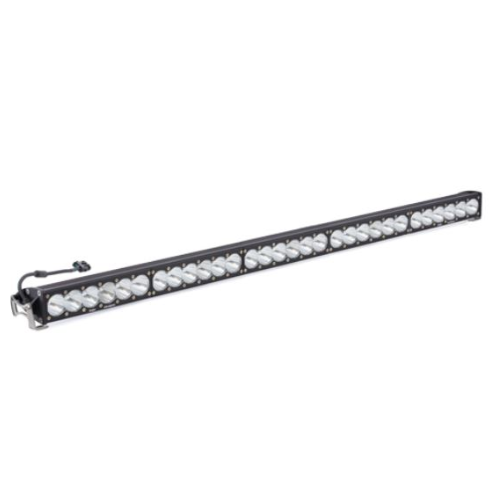

Baja Designs OnX6+ 50″ LED Light Bar (Spot – Clear) – 455001

Unmatched Off-Road Lighting Power & Durability

Engineered for serious off-roaders, the Baja Designs OnX6+ 50″ LED Light Bar delivers race-proven performance, extreme brightness, and rugged reliability. Designed with next-generation LED technology and precision optics, this light bar ensures maximum visibility across challenging terrains.

---

Key Features & Benefits

Superior Lighting Performance

• Extreme Brightness – Produces an impressive 39,430 lumens at high output.

• Spot Beam Pattern – Projects light deep into the trail for maximum reach and clarity.

• Dual Lighting Modes – High beam / low beam for versatile use.

Durable & Rugged Build

• Military-Grade Construction – Built from aircraft-grade aluminum with mil-spec hard anodize.

• Waterproof & Dustproof – Rated IP69K, resistant up to 9ft submersion and pressure washable.

• Impact Resistant – Certified IK10 mechanical impact testing for maximum toughness.

• MoistureBlock Technology – Prevents water and dust ingress even in harsh conditions.

Smart & Customizable

• uService Technology – Replace or customize lenses without voiding the warranty.

• Adjustable Mounting – Vertical adjustment for optimal beam placement.

• Universal Fit – Works with multiple off-road vehicle applications.

Race-Proven Reliability

• Tested beyond MIL-STD810G standards for extreme durability.

• Backed by 30-day Satisfaction Guarantee and Lifetime Limited Warranty.

---

Specifications

• Product Type: OnX6+ 50″ LED Light Bar

• Beam Pattern: Spot

• Brightness: 39,430 lumens (High)

• Wattage: 355W (High)

• Amperage Draw: 28.2A (High)

• Lighting Technology: LED (Forward Projecting)

• Lighting Quantity: 30 LEDs

• Lens Material: Hardcoated Polycarbonate

• Housing Material: Aircraft Grade Aluminum

• Bezel Material: Billet Machined Aluminum

• Color: Black housing / Clear lens

• Dimensions (in.): L 50″ × H 2.69″ × D 4.29″

• Weight: 18.65 lbs

• Mounting Hardware: Stainless steel brackets (included)

• Wiring Harness: Not included (use 640119 for 30–50 in.)

• Rated Lifespan: 49,930 hours

---

Easy Installation

• Comes with universal stainless steel mounting brackets.

• Plug-and-play ready (wiring harness sold separately).

• FAQs

  Q1: Is the wiring harness included with the Baja Designs OnX6+ 50″?
  A1: No, the wiring harness is sold separately. Use 640119 for 30–50 inch bars.

  Q2: Can I adjust the beam direction after installation?
  A2: Yes, vertical adjustments can be made and locked for the perfect beam pattern.

  Q3: Is the light bar waterproof?
  A3: Yes, it is rated IP69K, meaning it is fully waterproof, dustproof, and pressure washable.

  Q4: Can I replace or customize the lenses?
  A4: Yes, thanks to uService Technology, lenses can be changed without affecting warranty.

  Q5: What is the warranty on this product?
  A5: It comes with a 30-day Satisfaction Guarantee and Lifetime Limited Warranty.
