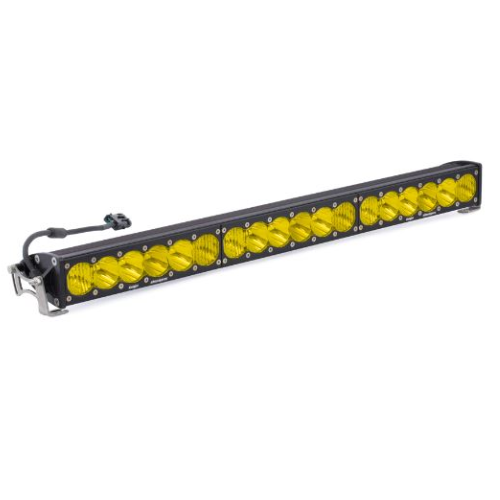

Baja Designs OnX6+ Driving Combo Amber 30 Inch LED Bar – Unmatched Off-Road Illumination

Engineered for serious off-roaders, the Baja Designs OnX6+ Driving Combo Amber 30” LED Light Bar delivers exceptional brightness, rugged durability, and versatile performance. With next-gen LEDs, advanced reflector technology, and race-proven reliability, this light bar ensures enhanced visibility and safety in every terrain.

---

High-Performance Lighting

• Extreme Output – Produces up to 31,910 lumens (High Beam) and 25,450 lumens (Low Beam).

• Driving/Combo Beam Pattern – Optimized for both distance and wide coverage.

• Amber Lens – Reduces glare and improves visibility in dust, fog, and harsh conditions.

• Dual Lighting Modes – High beam and low beam for adaptable performance.

---

Built to Withstand Tough Conditions

• Aircraft-Grade Aluminum Housing – Mil-spec hard anodized for ultimate strength.

• Impact & Water Resistance – IK10 compliant and IP69K rated, waterproof up to 9ft and pressure washable.

• Hardcoated Polycarbonate Lens – Scratch-resistant and highly durable.

• MoistureBlock Technology – Prevents water and dust intrusion.

---

Smart Design & Versatility

• Adjustable Mounting – Vertical adjustments with lock-in capability for precise beam placement.

• Universal Fitment – Works across multiple off-road vehicles.

• uService Technology – Swap or replace lenses without voiding the warranty.

• Overvoltage Protection – Built-in system ensures reliability.

---

Specifications

• Length: 30 in. | Depth: 4.29 in. | Height: 2.69 in.

• Weight: 11.45 lbs

• Wattage: 281W (High), 225W (Low)

• Amperage Draw: 21.7A (High), 17.1A (Low)

• Lighting Quantity: 18 LEDs

• Bezel Material: Billet Machined Aluminum

• Mounting Hardware: Stainless Steel Brackets (Included)

• Wiring Harness: Not Included (Use 640119 for 30–50in models)

• Rated Life: 49,930 hrs

---

Added Benefits

• Race-Proven Durability – Tested in the harshest racing conditions.

• Easy Installation – Comes with universal mounting brackets.

• Warranty Protection – 30-Day Satisfaction Guarantee + Lifetime Limited Warranty.

• FAQs

  Q1: Does the Baja Designs OnX6+ 30” light bar include a wiring harness?
  A: No, the wiring harness is not included. Use 640119 for 30–50” models.

  Q2: Can the lens be replaced if damaged?
  A: Yes, thanks to uService technology, you can change lenses without voiding the warranty.

  Q3: Is the OnX6+ 30” LED bar waterproof?
  A: Yes, it is IP69K rated (waterproof up to 9ft and pressure washable).

  Q4: What is the average lifespan of this light bar?
  A: It offers a 49,930-hour average rated life for long-term reliability.

  Q5: Is it suitable for racing applications?
  A: Absolutely! It has been race-proven in the Baja 1000 and other extreme conditions.
