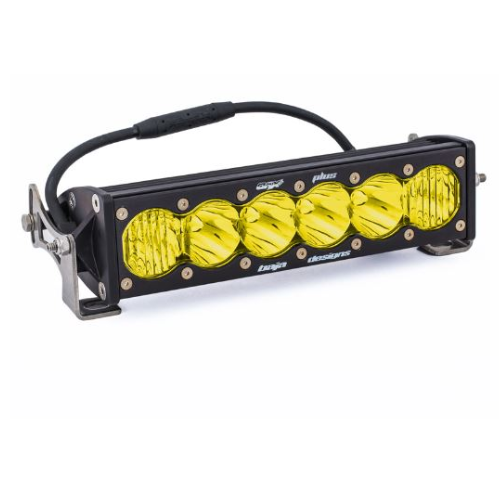

Baja Designs OnX6+ Driving Combo 10-Inch Amber LED Bar – Extreme Off-Road Lighting Performance

Engineered for serious off-roaders, the Baja Designs OnX6+ Driving Combo Amber LED Bar delivers unmatched illumination, rugged durability, and race-proven reliability. With cutting-edge LED technology and an optimized driving/spot beam pattern, this compact 10-inch light bar ensures maximum visibility and safety in any condition.

---

Superior Illumination

• High-Output Performance – Produces 10,817 lumens (high beam) and 9,230 lumens (low beam) for crystal-clear visibility.

• Next-Gen LED Technology – Advanced LEDs paired with patented high-speed spot reflectors.

• Amber Lens Advantage – Reduces glare and improves penetration in dust, fog, and challenging weather conditions.

---

Rugged Durability

• Military-Grade Housing – Built with aircraft-grade aluminum and mil-spec hard anodize finish.

• Waterproof & Dustproof – IP69K rated, resistant to water submersion up to 9 ft and pressure washing.

• Impact Tested – IK10 certified for superior mechanical impact resistance.

• MoistureBlock Technology – Prevents water and dust intrusion, ensuring reliability in the harshest environments.

---

Optimized Design & Flexibility

• Driving/Combo Beam Pattern – Combines distance and peripheral visibility.

• Adjustable Mounting – Vertical adjustments lock securely for precise beam alignment.

• Universal Fit – Compatible with a wide range of off-road vehicles.

• uService Technology – Easily swap or replace lenses without voiding the warranty.

---

Specifications

• Product Type: OnX6+ 10 Inch LED Light Bar

• Beam Pattern: Driving/Combo

• Brightness: 10,817 lumens (High) / 9,230 lumens (Low)

• Wattage: 106.26 W

• Amperage Draw: 7.7 A

• Rated Life: 49,930 hrs

• Light Source: 6 High-Performance LEDs

• Lighting Modes: High Beam / Low Beam

• Lens Material: Hardcoated Polycarbonate (Amber)

• Housing Material: Aircraft-Grade Aluminum

• Bezel Material: Billet Machined Aluminum

• Mounting Hardware: Stainless Steel (Included)

• Dimensions: 10” (L) × 2.69” (H) × 4.29” (D)

• Weight: 4.25 lbs

• Compliance: Exceeds MIL-STD810G, IP69K, IK10

---

Added Benefits

• Race-Proven Reliability – Designed and tested in the toughest off-road races like Baja 1000.

• Warranty Protection – Backed by a 30-day satisfaction guarantee and limited lifetime warranty.

• Easy Installation – Comes with mounting brackets (wiring harness sold separately).

• FAQs

  Q1: What makes the OnX6+ 10″ Amber LED Bar ideal for off-road use?
  A1: It combines 10,817 lumens of high-output LEDs with a Driving/Combo beam pattern, military-grade housing, and IP69K waterproofing, making it perfect for rugged trails and extreme conditions.

  Q2: Is the wiring harness included?
  A2: No, the wiring harness is sold separately. Use 640115 for 10–20″ bars or 640119 for 30–50″.

  Q3: Can I replace or upgrade the lens later?
  A3: Yes! Thanks to uService Technology, lenses can be swapped or replaced without affecting the warranty.

  Q4: What’s the warranty coverage?
  A4: Baja Designs offers a 30-day satisfaction guarantee and a limited lifetime warranty on this product.
